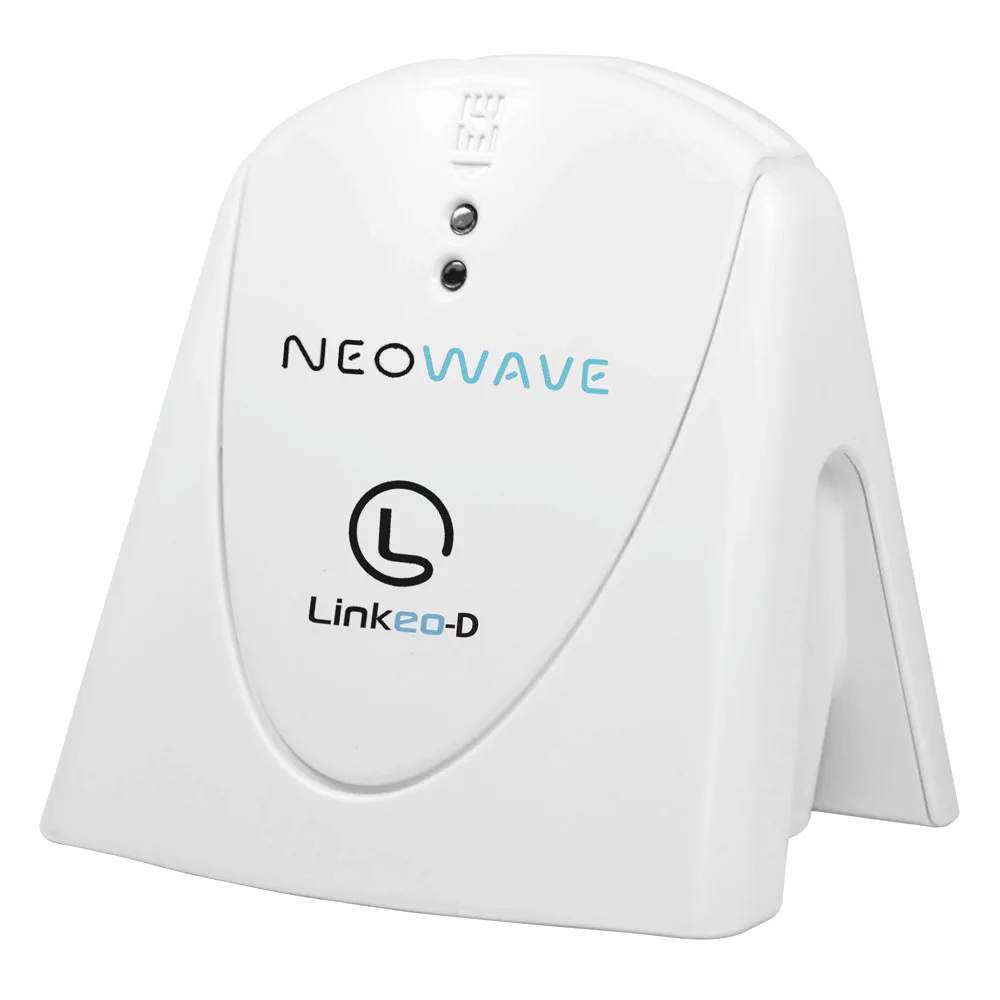

LinkeoA-D

LinkeoA-D is a contact smart card reader with vertical insertion. It is a perfect link with the PC for contact cards and dual cards implemented in the various smart card applications.

Contact reader (ISO 7816) with USB interface

Support for microprocessor cards and main memory cards

Easy to install (PC / SC CCID)

Ideal for online home or business transactions

LinkeoA-D’s advanced design and ergonomics allow vertical card insertion with one hand. They make it a simple and practical product to use which has already proven itself in the main smart card applications such as payment, identity, precision, transport, access control, network security applications. , health…
Thanks to its PC / SC CCID compatibility, it is compatible with Windows, Linux, Android and Mac systems (no driver is required).

Features

PC interface

USB Type-A 2.0 Full speed
• PC/SC
• CCID
• WHQL
• EMV 2000 Level One

Supported cards

Microprocessor cards (protocols T=0 and T=1)
ISO 7816 classes A, B and C cards (5V, 3V, 1.8V)
Support for PPS commands (Protocols and Parameters Selection)

Supported OS

Microsoft Windows, Linux, MAC OS X and Android

Standards

EN 60950/ IEC 60950
• ISO 7816
• PC/SC
• Microsoft WHQL
• Rohs
• Short circuit protection on all pins
• Consumption: 50mA
• Operating temperature range: 0°C to 50°C
• Relative humidity level: 10% to 90%

Size / Weight

Length 80 mm / Width 80 mm / Thickness 71.5 mm / Weight 175 g / Color white / Card connector life: >100 000 cycles
